                                                                                                                                                                                                                                    Carbon Steel Wear Plates for Mining, High Pressure Resistance Wear Plates, Mining Wear Plates with Warranty


Standard:	NM400, NM500	Product Category:	SSAW Steel Pipe
High Intensity:	Carbon Steel Plates Have High Strength And Can Withstand Significant Pressure And Impact	Good Wear Resistance:	Carbon Steel Plate Has Good Wear Resistance And Can Be Used In A Worn Environment For A Long Time
Application Area:	Construction, Machinery Manufacturing, Vehicle Manufacturing, Shipbuilding, Etc	Material:	NM500 Wear-resistant Plate
Thickness:	3mm - 50mm	Width:	600mm - 2500mm

Standard:	NM400, NM500
Product Category:	SSAW Steel Pipe
High Intensity:	Carbon Steel Plates Have High Strength And Can Withstand Significant Pressure And Impact
Good Wear Resistance:	Carbon Steel Plate Has Good Wear Resistance And Can Be Used In A Worn Environment For A Long Time
Application Area:	Construction, Machinery Manufacturing, Vehicle Manufacturing, Shipbuilding, Etc
Material:	NM500 Wear-resistant Plate
Thickness:	3mm - 50mm
Width:	600mm - 2500mm

Carbon Steel Wear Plates for Mining High Intensity and Pressure Resistance

Product Paramenters

Product Name	Carbon steel plate
Material	Q195/Q235/Q235b/Q345/A36/SS400/SA302 etc
Thickness	1mm - 200mm
Width	600mm - 2500mm
Length	1000mm - 12000mm
Tensile strength	400 - 550 MPa
Yield strength	≥ 245 MPa
Elongation rate	≥ 20%
Hardness	HB180 - 210
Application area	Construction, machinery manufacturing, vehicle manufacturing, shipbuilding, etc

Material type	Standard	Thickness	Width	Tensile strength	Yield strength	Elongation rate	Hardness
Mild steel	ASTM A36	1 - 200 mm	600 - 2500 mm	400 - 550	≥ 250	≥ 20	180 - 210
Medium carbon steel	ASTM A283	1 - 150 mm	600 - 2500 mm	450 - 650	≥ 275	≥ 15	200 - 230
High carbon steel	ASTM A515	1 - 100 mm	600 - 2000 mm	600 - 700	≥ 300	≥ 10	230 - 260
Weather resistant steel	ASTM A588	2 - 100 mm	600 - 2500 mm	485 - 620	≥ 345	≥ 20	200 - 220
Wear resistant steel	NM400, NM500	3 - 50 mm	600 - 2500 mm	1200 - 1500	≥ 1000	≥ 8	350 - 450
Marine carbon steel	ASTM A131	6 - 80 mm	600 - 2500 mm	400 - 620	≥ 235	≥ 22	200 - 220
Boiler and pressure vessel steel	ASTM A516	8 - 120 mm	1000 - 2500 mm	380 - 620	≥ 260	≥ 21	180 - 210

Product packaging

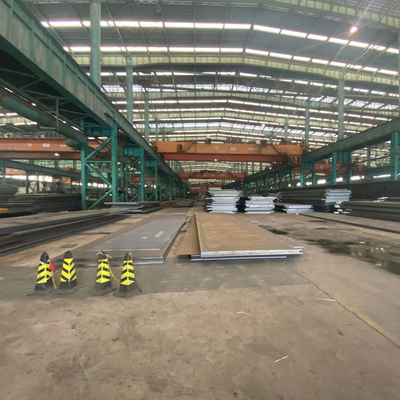

Factory production

Products Description

High intensity

Carbon steel plates have high strength and can withstand significant pressure and impact, making them particularly suitable for use in structures
that require load-bearing and compressive strength in construction and industry.

Good ductility and plasticity

Carbon steel plates can be cold-rolled and hot-rolled to meet manufacturing requirements of different thicknesses and sizes, making them
easy to form and process, and suitable for diverse design needs.

Good wear resistance

Carbon steel plate has good wear resistance and can be used in a worn environment for a long time, making it suitable for high friction
industries
such as mining equipment and mechanical parts.
