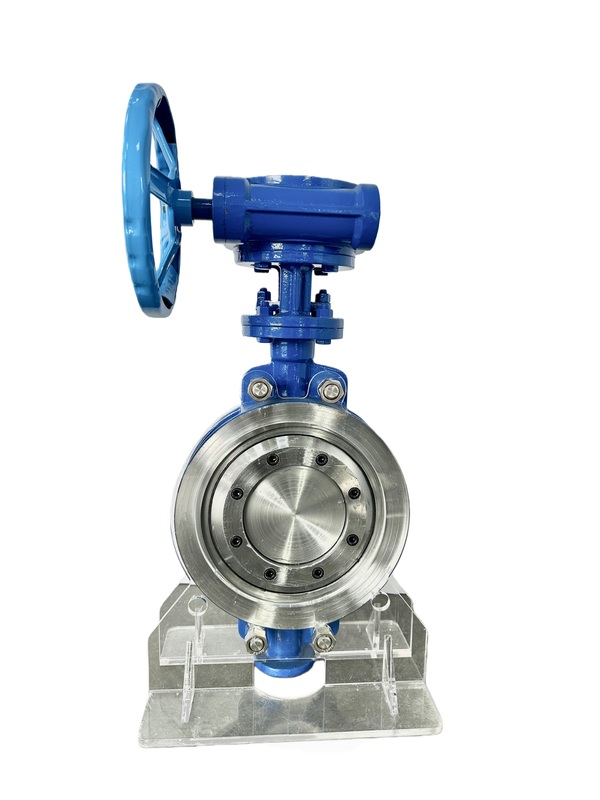

Butterfly Valve Pn16 DN150-DN1800 Double Flange Double Eccentric Soft Sealed BS5163

Name: Butterfly Valve Pn16 DN150-DN1800 Double Flange Double Eccentric Soft Sealed BS5163
Brand: Sindara Steel Co.,Ltd
SKU: Wafer-Type Butterfly Valve
Price: 155.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sindara steel

Certification: ISO 9001, ISO 14001, ISO 45001, CE

Model Number: Wafer-Type Butterfly Valve

Payment & Shipping Terms

Minimum Order Quantity: 10 pcs

Price: 10 USD-300 USD

Packaging Details: wooden case

Delivery Time: 10-30DAYS

Payment Terms: L/C, T/T

Supply Ability: 1000000

Get Best Price

Product Details

Product Description

Highlight:
                                    Double Eccentric Butterfly Valve, Pn16 Butterfly Valve, Soft Sealed Butterfly Valve


Butterfly Valve Pn16 DN150-DN1800 Double Flange Double Eccentric Soft Sealed BS5163

Description

The wafer-type butterfly valve has no flanges on its body. Instead, it is clamped directly between two pipe flanges using a few bolts (usually four or eight) threaded through holes in the valve body. Its key features are short length, light weight, and low cost.

Technical Parameters

Nominal Pressure:	PN6, 10, 16, 25.	Nominal Diameter:	DN 50 to DN 2000, and even larger.
Valve Body Material:	Gray Cast Iron (HT250), Ductile Iron (QT400), Cast Steel (WCB), Stainless Steel (CF8/304, CF8M/316, CF3/304L, CF3M/316L), Duplex Steel, etc.	Connection Type	Wafer-Type.

Product value advantage

●Compact structure and light weight

●Low cost and good economic efficiency

●Quick opening and closing, easy operation

●Low fluid resistance

●Easy installation

●Good adjustment performance

●Good sealing performance (especially soft seal)

Applications

Water supply and drainage systems: Municipal water supply, sewage treatment, and fire protection systems.

Heating, ventilation, and air conditioning (HVAC): Chilled water, hot water, and cooling water systems.

Chemical industry: Various non-corrosive chemical liquids.

Power: Circulating water and cooling water systems. Food and Pharmaceutical: Butterfly valves with sanitary designs are used for material handling.

Shipbuilding: Seawater, ballast water, and bilge water systems.

Compressed Air and Gas: Used in low-pressure air and gas pipelines.

Butterfly Valve Pn16 DN150-DN1800 Double Flange Double Eccentric Soft Sealed BS5163 0
